11.25 Degree Grooved Pipe Elbow Fittings

  •  11.25 Degree Grooved Pipe Elbow Fittings
  •  11.25 Degree Grooved Pipe Elbow Fittings

Product Introduction
1. Fittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 ductile iron standards.
2. The dimensions meet ANSI/AWWA C606-06 standards
3. Center to end dimensions are determined according to the manufacturer's standards.
4. Coating options: epoxy, paint, dacromet, hot-dip galvanized.

Technical Data

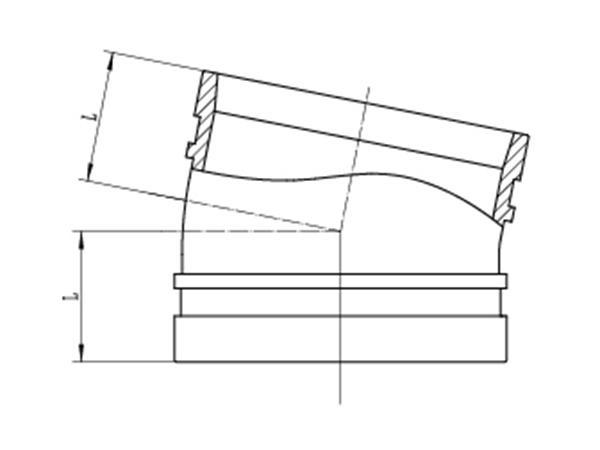

Grooved 11.25°Elbow XGQT013
Nominal size mm/in Pipe O.D mm/in Dimensions Working Pressure (psi)
L(mm)
32 42.4 35 300
11 / 4 1.669
40 48.3 35
11 / 2 1.9
50 60.3 35
2 2.375
65 73 38
21 / 2 2.875
65 76.1 38
21 / 2 3
80 88.9 38
3 3.5
100 108 45
4 4.25
100 114.3 45
4 4.5
125 133 51
5 5.25
125 139.7 51
5 5.5
125 141.3 51
5 5.563
150 159 51
6 6.25
150 165.1 51
6 6.5
150 168.3 51
6 6.625
200 219.1 51
8 8.625
250 273 54
10 10.75
300 323.9 57
12 12.75

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe elbow manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of 11.25 degree pipe elbow fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved elbow as well as custom firefighting and water supply solutions based on the client needs.
