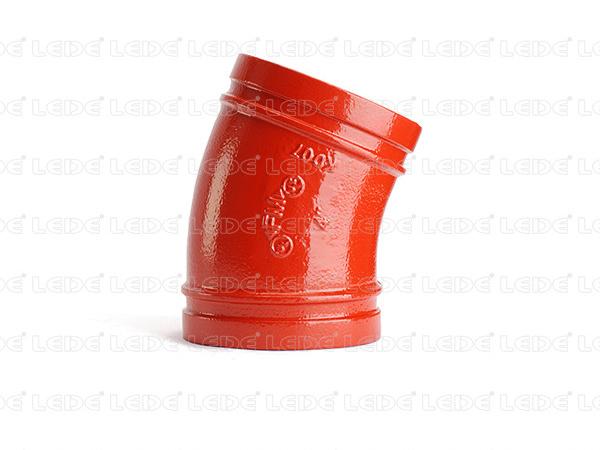

22.5 Degree Grooved Pipe Elbow Fittings

  •   22.5 Degree Grooved Pipe Elbow Fittings
  •   22.5 Degree Grooved Pipe Elbow Fittings

Product Introduction
1. Fittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 Ductile Iron standards.
2. Dimensions meet ANSI/AWWA C606-06 standards
3. Center to end dimensions all meet the manufacturer's standards.
4. Coating options: epoxy, paint, dacromet, hot-dip galvanized.

Technical Data

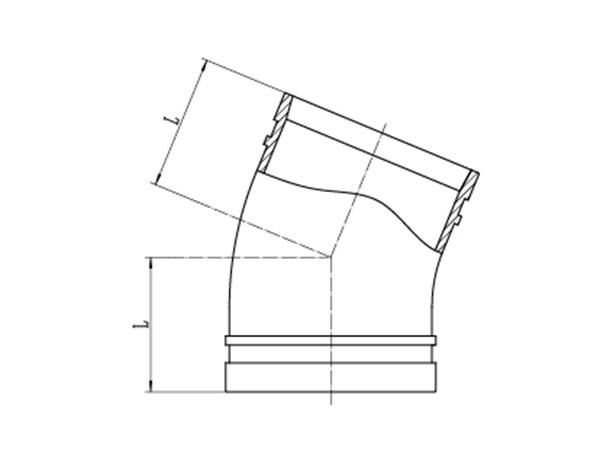

Grooved 22.5°Elbow XGQT012
Nominal size mm/in Pipe O.D mm/in Dimensions Working Pressure (psi)
L(mm)
32 42.4 45 300
11/4 1.669
40 48.3 45
11/2 1.9
50 60.3 48
2 2.375
65 73 51
21/2 2.875
65 76.1 51
21/2 3
80 88.9 57
3 3.5
100 108 73
4 4.25
100 114.3 73
4 4.5
125 133 73
5 5.25
125 139.7 73
5 5.5
125 141.3 73
5 5.563
150 159 79
6 6.25
150 165.1 79
6 6.5
150 168.3 79
6 6.625
200 219.1 98
8 8.625
250 273 111
10 10.75
300 323.9 124
12 12.75

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe elbow fittings manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of 22.5 degree elbow fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron pipe elbow fittings as well as custom firefighting and water supply solutions based on the client needs.
