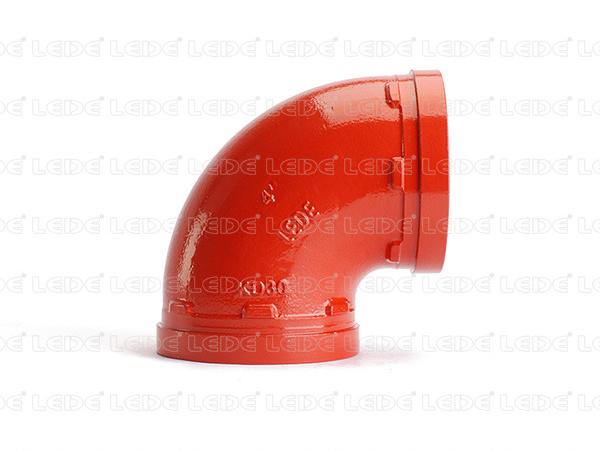

90 Degree Grooved Pipe Elbow Fittings

  •   90 Degree Grooved Pipe Elbow Fittings
  •   90 Degree Grooved Pipe Elbow Fittings

Product Introduction
1. Fittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 ductile iron standards
2. Dimensions meet ANSI/AWWA C606-06 standards
3. Center to end dimensions are determined according to the manufacturer's standards.
4. Coating options: epoxy, paint, dacromet, hot-dip galvanized.
5. UL listed, FM approval.

Technical Data

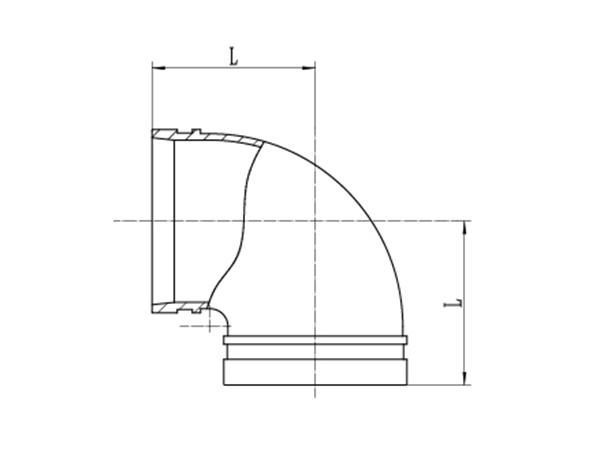

90°Elbow XGQT01
Nominal size mm/in Pipe O.D mm/in Dimension Working Pressure (psi)
L(mm)
Short Standard
25 33.7 57 300
1 1.327
32 42.4 70
11 / 4 1.669
40 48.3 70
11 / 2 1.9
50 60.3 70 83
2 2.375
65 73 76 95
21 / 2 2.875
65 76.1 76 95
21 / 2 3
80 88.9 85 108
3 3.5
100 108 102 127
4 4.25
100 114.3 102 127
4 4.5
125 133 121 140
5 5.25
125 139.7 121 140
5 5.5
125 141.3 121 140
5 5.563
150 159 130 165
6 6.25
150 165.1 130 165
6 6.5
150 168.3 140 165
6 6.625
200 219.1 175 197
8 8.625
250 273 215 229
10 10.75
300 323.9 220 254
12 12.75

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe elbow fittings manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of 90 degree elbow fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved pipe elbows as well as custom firefighting and water supply solutions based on the client needs.
