90 Degree Grooved Reducing Pipe Elbow Fittings

  •  90 Degree Grooved Reducing Pipe Elbow Fittings
  •  90 Degree Grooved Reducing Pipe Elbow Fittings

Product Introduction
The grooved reducing elbow is large on one end, and the smaller end features a reduced size, female NPT thread.
Ductile iron construction
Lead free orange paint
Conforms to ASTM A536 standards
All sizes of the grooved reducing elbow are UL and FM approved for a 300 PSI working pressure.

These pipe fittings are designed to provide an economical and efficient method for changing direction, adding an outlet, reducing, or capping grooved piping systems. All fittings are supplied with grooves to permit a quick installation with no field preparation.

Technical Data

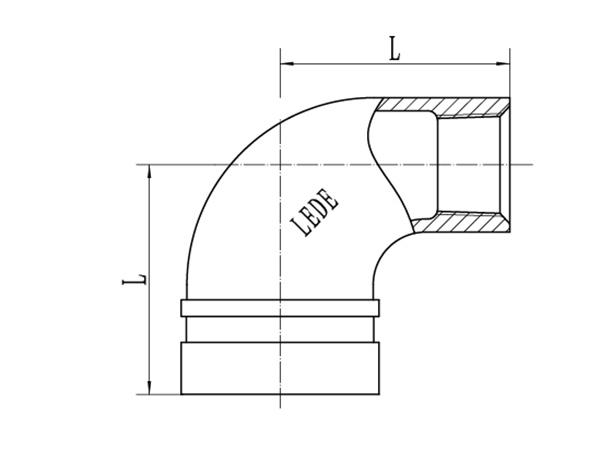

90° Reducing Elbow XGQT014
Nominal size mm/in Dimensions Working Pressure ( Psi )
L/mm
32×15 61 300
11/4x1/2
32×20
11/4x3/4
32×25
11/4x1
40×15 64
11/2x1/2
40×20
11/2x3/4
40×25
11/2x1
50×15 70
2x1/2
50×20
2x3/4
50×25
2×1
65×15 76
21/2x1/2
65×20
21/2x3/4
65×25
21/2x1

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved reducing pipe elbow fittings manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of 90 degree reducing elbow fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved reducing elbow as well as custom firefighting and water supply solutions based on the client needs.
