Pipe Fittings

Tee Pipe Fittings
    2. Grooved Pipe TeeThe grooved tee pipe fittings are made from cast ductile iron conforming to ASTM A536 standards.
      Dimensions of the pipe tee adhere to ANSI/AWWA C606-06 standards.

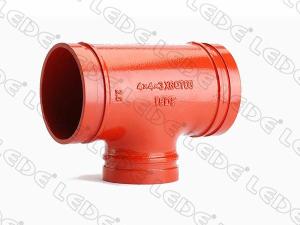

    2. Grooved Pipe Reducing TeeThe grooved reducing tee is made from ductile iron.
      Lead free orange paint is coated on the grooved pipe tee.
      These pipe tees conform to ASTM A536 standards.

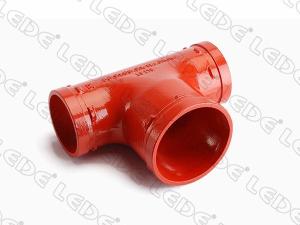

    2. Grooved Piping System Bullhead TeeFittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 Ductile Iron.
      Dimensions adhere to ANSI/AWWA C606-06.
      Center to End Dimensions are manufacture's standard.

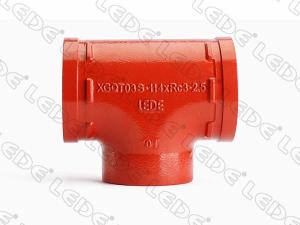

    2. Threaded Reducing Pipe TeeA reducing coupling in a grooved piping system is designed to provide a restraining piping connection while reducing (or increasing) a pipe's size. It is a transition piece where pipes of different sizes can be paired together using a single pipe tee.
Cross Pipe Fittings
    2. Grooved Pipe CrossLead free orange paint
      Conforms to ASTM A536 standards
      UL listed, FM approved

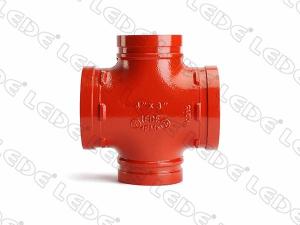

    2. Grooved Reducing Cross Pipe FittingsUL, FM listed and factory mutual approved for 300 PSI service.
      Ductile iron per ASTM A536 standards
      Dimensions conform to ANSI B 16.4 CLASS 125 standards

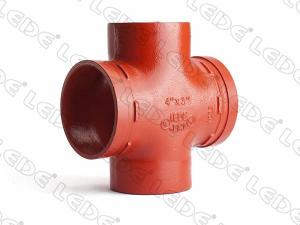

    2. Threaded Reducing Cross Pipe FittingsUL and factory mutual approved for 230 PSI service.
      Ductile Iron per ASTM 126 CLASS B standards.
      Dimensions conform to ANSI B 16.4 CLASS 125 standards.
Piping Plumbing Reducer Fittings
    2. Grooved Pipe ReducerPressure: 300 psi water working pressure
      Testing: In accordance with ANSI / AWWA C110 / A21.10 standards where applicable.

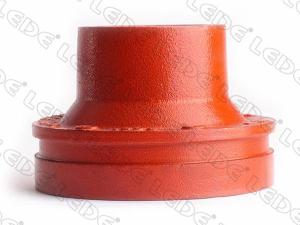

    2. Threaded Pipe ReducerTesting: In accordance with ANSI / AWWA C110 / A21.10 standards where applicable.
      Approvals: Underwriters Laboratories listed and Factory Mutual Approved.

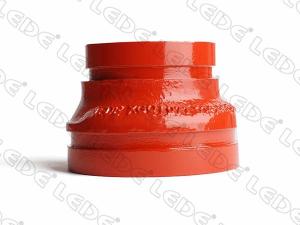

    2. Grooved Pipe Eccentric ReducerTesting: in accordance with ANSI / AWWA C110 / A21.10 standards where applicable.
      Approvals: Underwriters Laboratories listed and Factory Mutual approved.
Cap Pipe Fittings
    2. Grooved Pipe End CapThese grooved end caps comply with, and are manufactured according to the following standards:
      Pressure rating: 300 psi

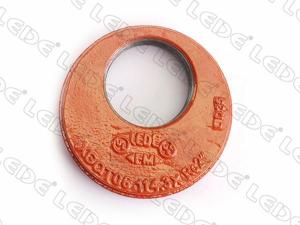

    2. Eccentric Hole Grooved Pipe End CapANSI B 16.3- Ductile Iron Threaded Fittings Classes 150
      ANSI/ASME B1.20.1- Pipe Threads, General Purpose (inch) NPT
Elbow Pipe Fittings
    2. 11.25 Degree Grooved Pipe Elbow FittingsFittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 ductile iron standards.
      The dimensions meet ANSI/AWWA C606-06 standards
      Center to end dimensions are determined according to the manufacturer's standards.
    2. 22.5 Degree Grooved Pipe Elbow FittingsFittings are cast ductile iron conforming to ASTM A536, Gr. 65-45-12 Ductile Iron standards.
      Dimensions meet ANSI/AWWA C606-06 standards

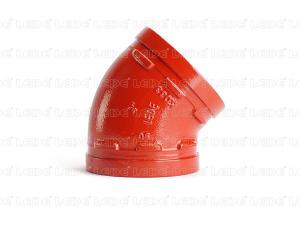

    2. 45 Degree Grooved Pipe Elbow FittingsDimensions meet ANSI/AWWA C606-06 standards.
      Center to end dimensions are all designed according to the manufacturer's standards.
      Coating options: epoxy, paint, dacromet, hot-dip galvanized.

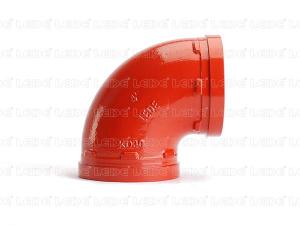

    2. 90 Degree Grooved Pipe Elbow FittingsCenter to end dimensions are determined according to the manufacturer's standards.
      Coating options: epoxy, paint, dacromet, hot-dip galvanized.
      UL listed, FM approval.

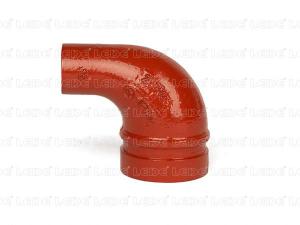

    2. 90 Degree Grooved Reducing Pipe Elbow FittingsThese pipe fittings are designed to provide an economical and efficient method for changing direction, adding an outlet, reducing, or capping grooved piping systems. All fittings are supplied with grooves to permit a quick installation with no field preparation.

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe fittings manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of pipe fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron pipe fittings as well as custom firefighting and water supply solutions based on the client needs.
