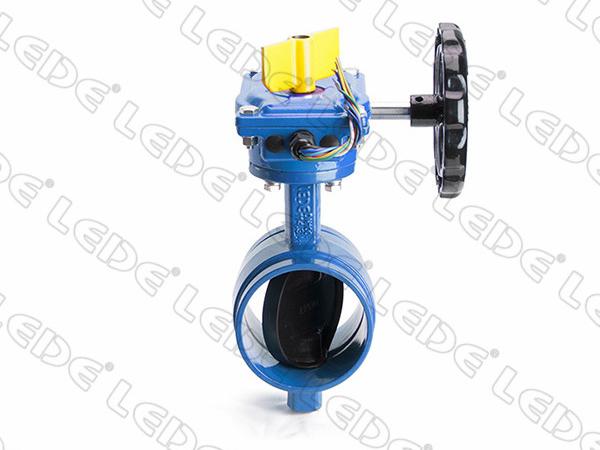

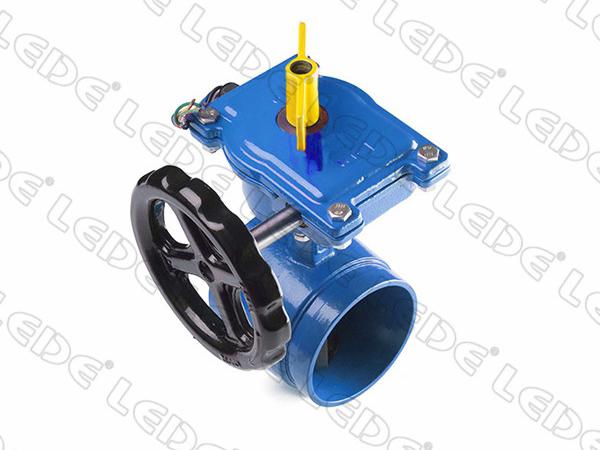

Grooved Butterfly Valve
1. The self-sealing center-line butterfly valve is a newly designed and innovative valve with a micro-interference between the rubber disc and valve channel, which can decrease abrasions to the sealing face, increasing the service life of valves.
2. With a self-sealing structure, the sealing property of the butterfly valve is proportional to fluid pressure, allowing the valves to withstand high pressures.
3. The sealing lip on the rubber disc can remove mud and dirt when the valve closes.
4. The outer and inner surfaces of the grooved valve are coated in a high quality epoxy powder, so the paint coat is complete and even, making the valve safe for use in the food, beverage and pharmaceutical industries.
A level handle D81X, gear operator D381X, electric actuator D981X, and pneumatic actuator D681X can all be added to the valves as per customer requirements.
Nominal Pressure PN 10/16/25Technical Data
|Nominal diameter||DN50- 2 00|
|Nominal pressure||PN 10/16/25|
|Valve standard||GB5135.6 MSS SP-67|
|Face to face length||MSS SP-67|
|Grooved standard||GB5135.11 AWWA C606|
|Test standard||GB5135.6 MSS SP-67|
|Temperature range||0~80° C|
|No.||Name of Parts||Material|
|2||Square hole washer||Carbon steel hot galvanizing or stainless steel|
|3||Bolt||Carbon steel hot galvanizing or stainless steel|
|4||Spring washer||Carbon steel hot galvanizing or stainless steel|
|5||Flat washer||Carbon steel hot galvanizing or stainless steel|
|7||earing bush||Bronze or POM|
|8||Driven shaft||Stainless Steel 304 or 1Cr17Ni2 or 2Cr13|
|10||Bearing bush||Bronze or POM|
|11||Actuating shaft||Stainless Steel 304 or 1Cr17Ni2 or 2Cr13|
|12||Bearing bush||Bronze or POM|
|13||O-rings||EPDM or NBR|
|14||O-rings||EPDM or NBR|
LEDE company design and manufacture industrial valve and grooved piping system fittings, is a leading China grooved butterfly valve manufacturer and supplier, provide pipe jointing and flow control products of water work system. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved butterfly valve as well as custom firefighting and water supply solutions based on the client needs.
